Geberit Connection Box & Power Supply Set for Geberit Sigma Frame

Product description

Geberit Connection Box & Power Supply Set for Geberit Sigma Frame

This Connection Box and Power Supply Set is designed to supply 12V DC power to Geberit WC flush controls and Geberit DuoFresh modules and prepares the mains connections of Geberit AquaClean shower toilets.

It can be installed tool free and works with Geberit Sigma Duofix 12cm Cistern Frames providing a link to hidden mains connections behind the WC ceramic appliance & frame.

It eliminates the need to disrupt existing walls with a roughing box when retrofitting electrics to either an infrared flush plate and or Geberit AquaClean Smart Toilet.

Application Purposes:

• For Geberit Duofix Frames for wall-hung WC, with Sigma concealed cistern 12cm
• For supplying 12 V DC power to Geberit WC flush controls and Geberit DuoFresh modules
• For preparing the mains connections of Geberit AquaClean shower toilets
• For hidden mains connection behind the WC ceramic appliance

Features:

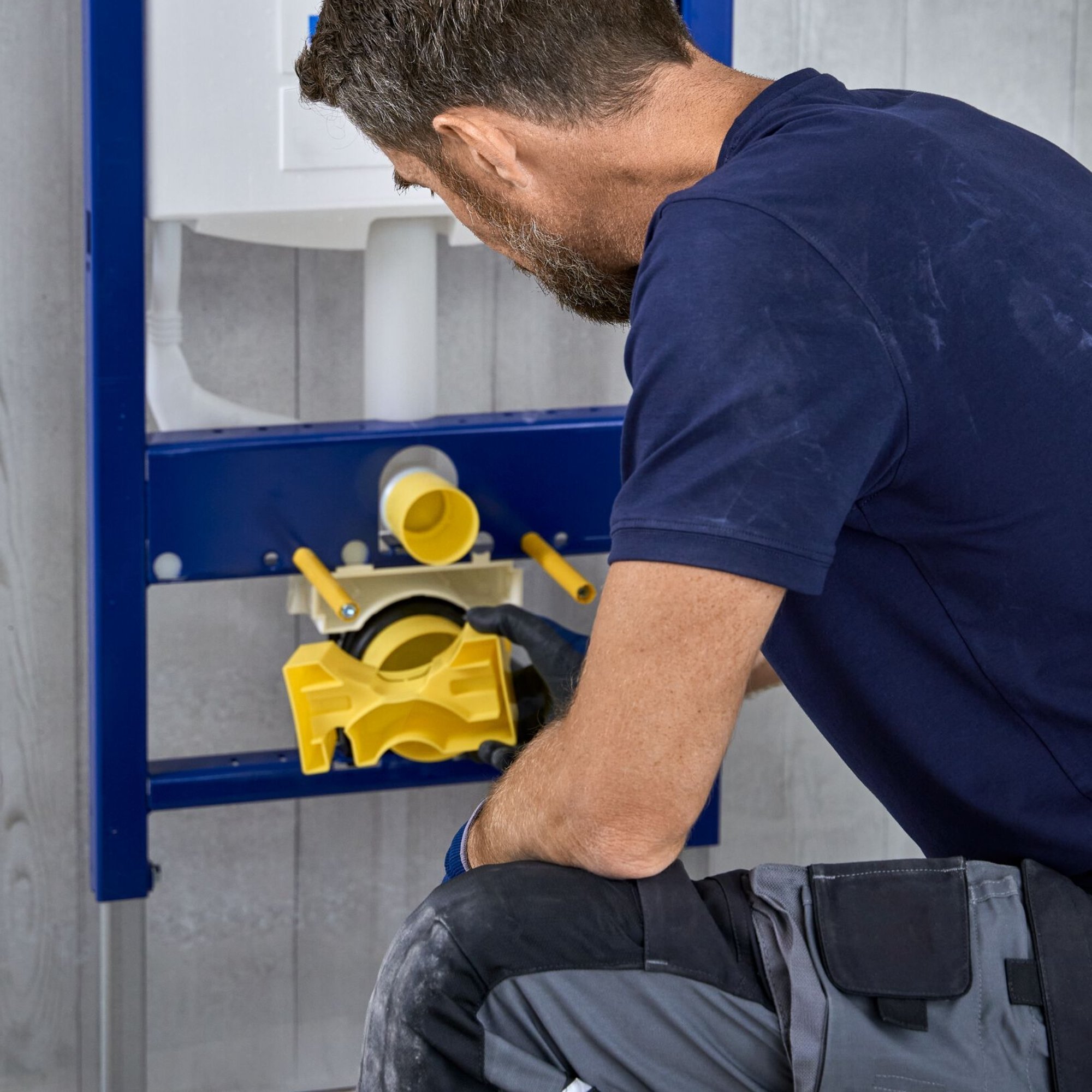

• Can be installed without tools
• Separation of trades
  Power supply unit with LED display
• Connection cable with LED display
• Connection option for Geberit AquaClean
• Protection cover box for service opening protects against moisture and dirt

Technical Data:

• Protection degree IPX4
• Nominal voltage 90–260 V AC
• Mains frequency 50–60 Hz
• Output voltage 12 V DC
• Power 12W

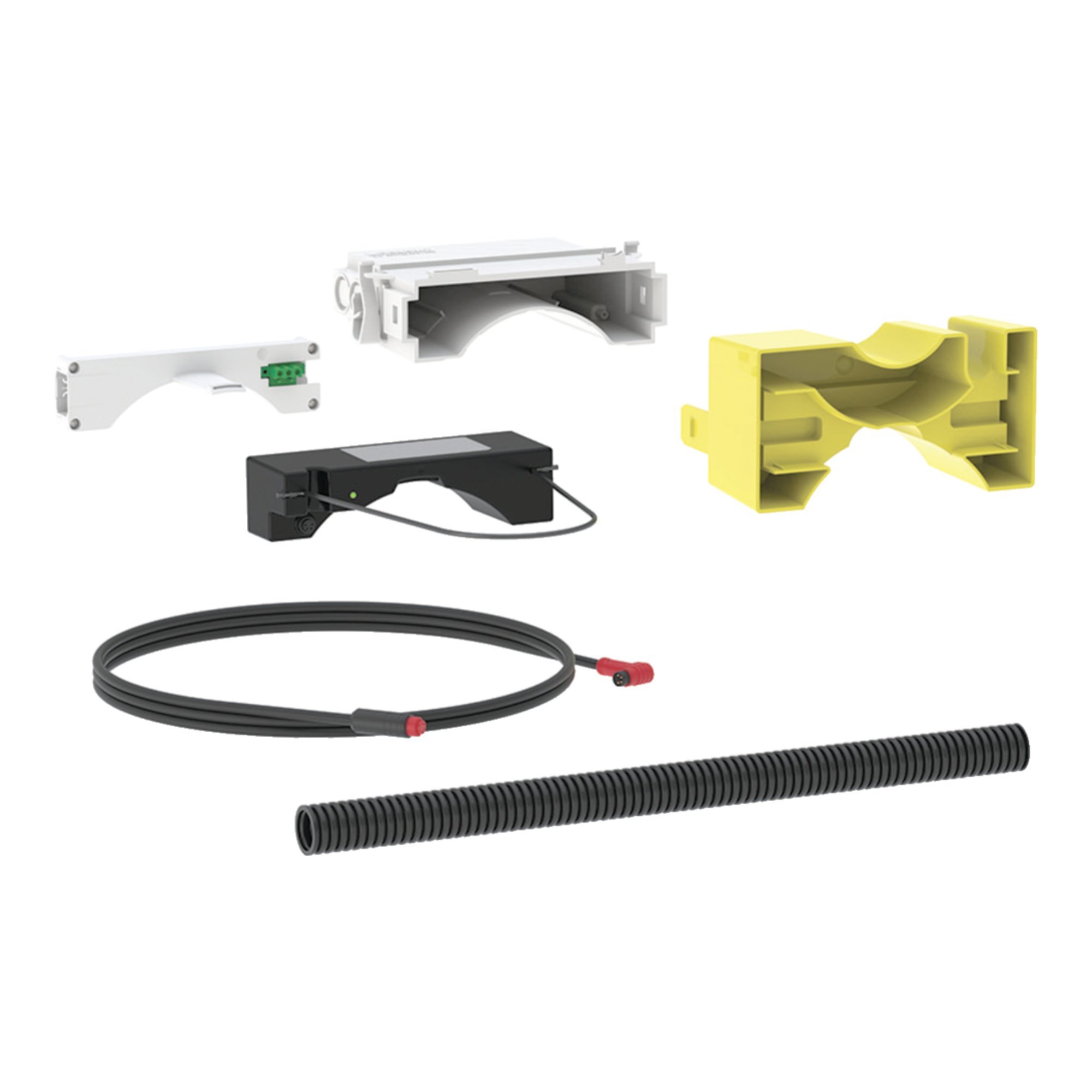

What's Included:

• Power & Connect Box
• Power supply unit with LED display
• Connection cable
• Intermediate bottom with terminal
• Protection box
• Conduit pipe, length 0.32m, for connection of Geberit AquaClean

Product Code:

• 116.098.00.1 - Geberit Connection Box & Power Supply Set for Geberit Sigma Frame
